Description

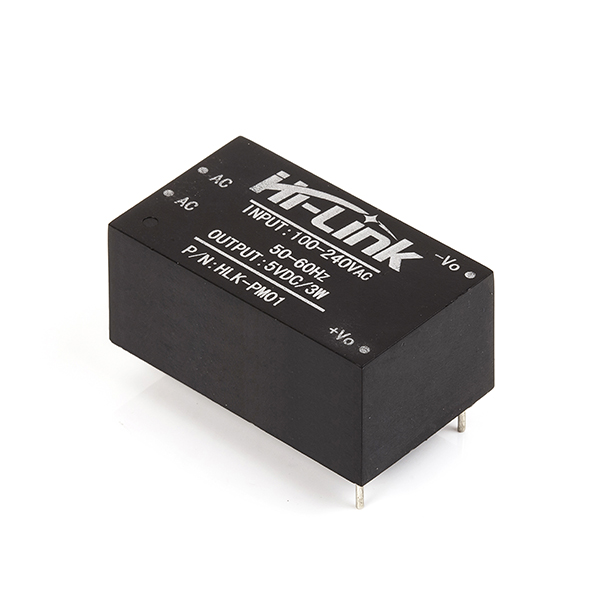

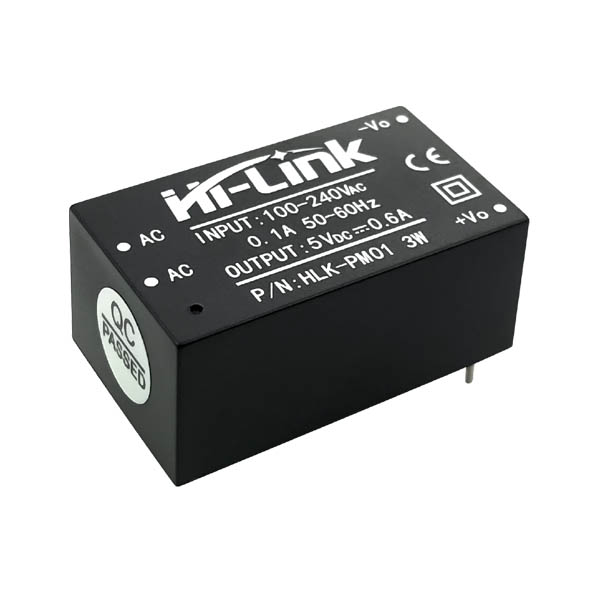

5V/3W SMPS Module (Hi-Link) is PCB mounted plastic enclosed isolated switching step-down power supply module. It can supply 5V DC from 120V AC – 230V AC and has a power rating of 3 Watt. This makes it perfect for small projects that needs a 5 volt supply from mains. There are many advantages for these modules, such as low temperature rise, low power, high efficiency, high reliability, high security isolation etc. It is widely used in smart home, automation and control, communication equipment, instrumentation and other industries.
Specifications of 5V/3W SMPS Module (Hi-Link):
- Meet UL, CE requirements,
- All voltage input (AC: 90 ~ 264V)
- Low ripple and low noise
- Output overload and short circuit protection
- High efficiency, high power density
- The product is designed to meet the requirements of EMC and Safety Test
- Low power consumption, environmental protection, no-load loss <0.1W
- Operation Temperature: -20 — +60°C
- Store Temperature: -40 — +80°C
- Relative humidity: 5 — 95%
- Rated input voltage:100-240VAc
- Maximum input current: <0.2A
- Input current surge: <10A
- Maximum input voltage: 270VAc
- Input Low Voltage Efficiency: Vin=110VAc, Output full-load: 69%
- Input High Voltage Efficiency: Vin=220VAc, output full-load: 70%
- Long-term reliability: MTBF 100000h
- Load rated output voltage: +5±0.1
- Short-term maximum output current: 1000mA
- The maximum output current for a long time: 600mA
- Output ripple and noise: 50 mVpp Rated input voltage, full load. Using 20MHz of bandwidth, the load side with 10uF and 0.1uF capacitor
- Shell maximum surface temperature does not exceed 60°C
Dimensions:
- Weight: 20g
- Size: 33 * 19 * 15mm
