Description
Description:
Working band of NRF905 : 433/868/915MHz
Number of Channel : 170; Frequency stabilization mode: PLL
Modulation mode: FSK/GMSK; Maximum output power: +10dBm
Sensitivity: -100dBm; Working voltage: 2.7–3.3V
Maximum working rate: 76.8Kbit/s
Specification:
Tri band transceiver’s operating frequency is international ISM band 433/868/915 MHz GMSK modulation
It has strong anti-interference ability, great frequency stability and high sensitivity
Fit for industrial control occasions using DSS+PLL frequency synthesis technology
Working voltage (2.7V) can reach -100dBm, very low power consumption
The 1uA standby state can meet the requirement of low-power devices
Maximum transmit power can reach +10dBm with multiple channels (up to more than 170)
Especially good for occasion which requires multi channels and the working rate can be up to 76.8Kbps
Peripheral components is kept to the least (only 10 units) and basically there is no need for debugging
Package Includes:

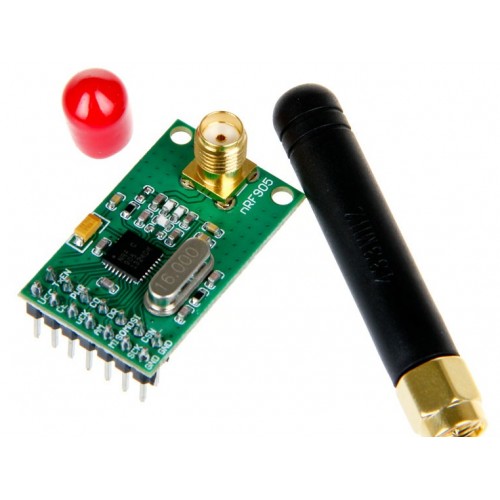

1 Piece Wireless Module
1 Piece Antenna
