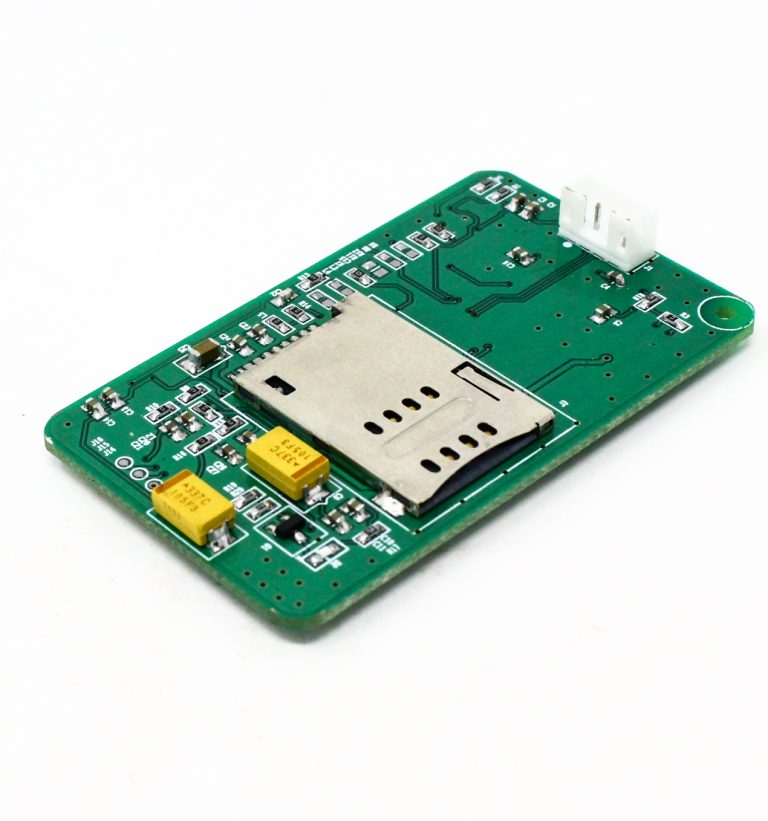

SIM7600EI 4G LTE High-Speed Modem GPS/GNSS IoT board

Description

• SIM7600EI is a complete multi-band LTE-FDD/LTE-TDD/HSPA+/UMTS/EDGE/GPRS/GSM module solution in LCC type which supports LTE CAT1 up to 10Mbps for downlink and 5Mbps for uplink data transfer. Designed in the compact and unified form factor, SIM7600EI is compatible with SIMCom HSPA+ SIM5360 module/LTE CAT3 SIM7100 and LTE CAT4 SIM7600E-H module, which allows the customer to design their application once for different technology and benefit from great development time-saving


• Pinout Description:

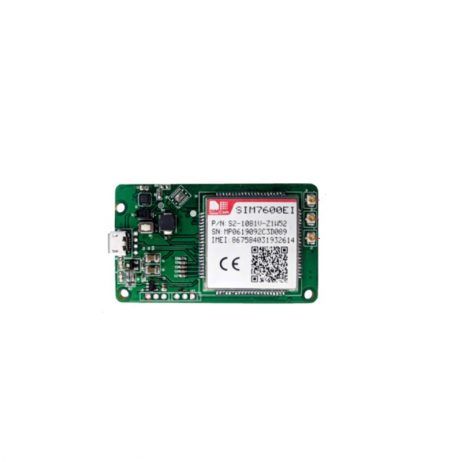

  SIM7600EI 4G LTE High-Speed Modem GPS/GNSS IoT board

  This SIM7600EI 4G LTE High-Speed Modem GPS/GNSS IoT board has strong extension capability with rich interfaces including UART, USB2.0, SPI, I2C, Keypad, PCM, etc. With abundant application capabilities like TCP/UDP/FTP/FTPS/HTTP/HTTPS/SMTP/POP3 and MMS, the module provides much flexibility and ease of integration for the customer’s application.

  ---

   Installation Steps:

  1. Unzip driver file (Given in an Attachment)
  2. Open Mange from My computer
  3. Open  device manager
  4. Right click on LPT &COM Port.
  5. Click on port & open properties.
  6. Install driver & provide path of unzip file.(select drivers as per your system OS : Windows 7 , Windows 8 etc)

  ---

  Features:

  1. LTE-TDD B40/B41
  2. LTE-FDDB1/B3/B5/B8
  3. UMTS/HSPA+ B1/B8
  4. GSM/GPRS/EDGEB3/B8
  5. LCC Package
  6. Control Via AT Commands
  7. 3GPP E-UTRA Release 11
  8. USB Driver for Microsoft Windows 2000/XP/Vista/Win7/Win/Win10
  9. USB Driver for Linux /Android
  10. RIL supporting for Android 2.4/4.0/5.0/6.0/7.0
  11. MBIM to Win8
  12. Firmware update via USB
  13. TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS /HTTP/HTTPS/DNS
  14. SSL3.0/TLS1.0/TLS1.2
  15. DTMF (Sending and Receiving)
  16. Audio Playing
  17. USB Audio and VoLTE
  18. FOTA
